Light a Key Speaker with a wall wash type fixture. Because of the angled position, we chose to light this speaker from two sides.(The IW, IWTB & IWS Series have a hidden lamp for comfort.)


The VT, VTTB & VTS Series indirect 2 x 2 fixtures provide vertical illumination in three directions to comfortably light the participants without washing out the viewing screen.

When looking at other products compare these features:
  • High efficiency fixtures means designing with less fixtures.
  • Totally indirect, so the overly bright lamp is never in view.
  • Can be placed 1´ in front of the screen, and not wash it out.


Lighting the walls allows added control to balance the lighting in the room for video conferencing. Additionally, when the video conference fixtures are dimmed for non-video meetings, you can adjust the light levels on the walls.


The Camera for the Key Speaker is ordinarily mounted at the ceiling with a tight focus on the speaker. The camera would not have the ceiling (or lighting fixtures) in its view.

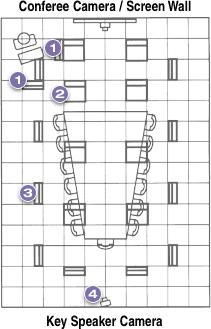

Zones of Control:
  • 2 x 2 Video Conference Fixtures.
  • Wall Washers along the two long walls.
  • Wall Washers at the back(South) wall.
  • Key Speaker Lighting.
