Mini, high performance LED cove fixture is made to lay directly into your narrow or prefabricated cove shelf, or be surface mounted to become the cove itself. The one piece reflector design illuminates the cove and minimizes shadows. By projecting light out of the cove and into the space for general illumination, they provide far superior performance than a typical “strip light” or LED tape. “AX” type CLM are designed to fit within existing aluminum extruded cove
| Fixture | Mounting | Nominal Sizes | Fixture Lumens (per foot) | View or Download |
|---|---|---|---|---|
| CLM LED | Within Cove or Surface Mount | 2-3/4" tall x 4" W x 23" to 93" L | 1430 per foot | |

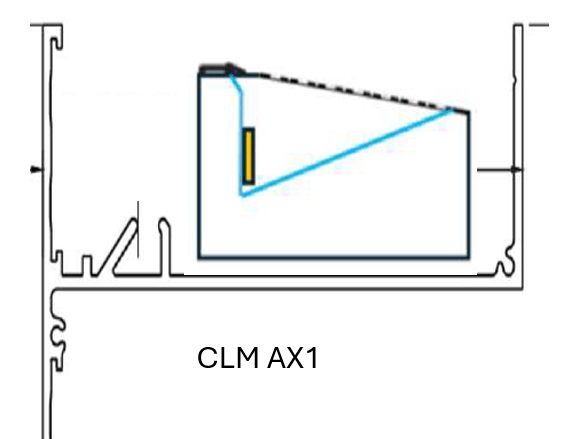

| CLM AX1 | within existing AX extruded channel type cove | 2'' tall x 2-7/8'' W x 24'' to 96'' L | 1400 per foot | |

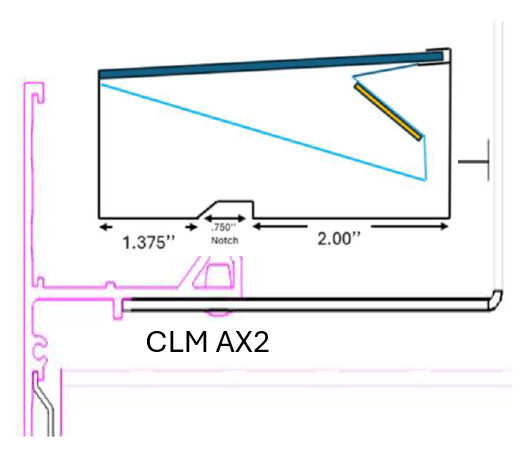

| CLM AX2 | within existing AX extruded channel type cove | 1.9'' tall x 4.125'' W x 22'' to 93'' L | 1400 per foot |
- Catalog Cut
- Installation Instructions
- IES Photometrics
- BIM Files
