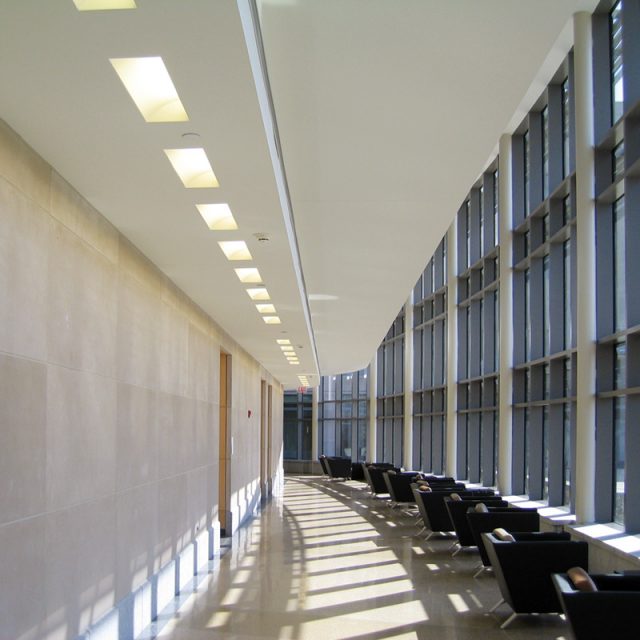

The AK LED Series provides a powerful, high-performance asymmetric wash of smooth, even lighting. In addition to being an exceptional wall wash luminaire, it is shallow enough to recess into a standard stud wall to light the ceiling or floor. LED’s are totally indirect.
Recessed
| Fixture | Mounting | Nominal Sizes | Fixture Lumens (per foot) | View or Download |
|---|---|---|---|---|
| AK LED | Recessed / Gypsum | 3-1/2” deep x 8-1/2” W x 12” to 48” L | up to 3010 per foot | |
| AKCC & AKCW LED | Recessed / Gypsum / Continuous | 3-1/2” deep x 8-1/2” W x 24” to 48” L | up to 3010 per foot | |
| AKTB LED | Recessed / T-Bar / Continuous | 3-1/2" deep x 8-1/2" W x 24" to 48" L | up to 3010 per foot |
Surface
| Fixture | Mounting | Nominal Sizes | Fixture Lumens (per foot) | View or Download |
|---|---|---|---|---|
| AKS LED | Surface / Pendant / Continuous | 3-1/2” deep x 8-1/2” W x 24” to 48” L | up to 3010 per foot |
Trimless
| Fixture | Mounting | Nominal Sizes | Fixture Lumens (per foot) | View or Download |
|---|---|---|---|---|
| AK LED TLD & TLP | Trimless Drywall or Plaster | 3-1/2" deep x 8-1/2" W x 12" to 48" L | up to 3010 per foot |
- Catalog Cut
- Installation Instructions
- IES Photometrics
- BIM Files
